On a technical specification sheet, 1kW of maximum power consumption appears as a single, static operating condition, but in the reality of modern silicon, it represents a dynamic and volatile environment. As artificial intelligence accelerators push toward and beyond the kilowatt threshold, the industry is discovering that power is not a fixed number, but a fluid variable that moves across compute blocks, memory interfaces, and power-delivery pathways. This shift fundamentally alters the landscape of semiconductor validation, where traditional methods of ensuring device reliability are proving insufficient to address the thermal and electrical complexities of next-generation hardware.
The core of the challenge lies in the distinction between aggregate power and local power density. Two distinct software workloads may result in the same 1,000-watt power draw, yet the physical consequences for the chip can be vastly different. One workload might concentrate heat in the high-bandwidth memory (HBM) interfaces, while another might stress the compute tiles, creating localized hotspots that do not register when looking at total system power consumption. Because heat moves in tandem with these shifting electrical loads, validation has evolved from a simple exercise of reproducing rated power into a comprehensive audit of the entire package, cooling ecosystem, and test infrastructure.
The Evolution of Test Methodology: From Faults to Thermal Coverage
For decades, semiconductor testing relied heavily on fault coverage—the ability of test patterns to expose structural defects and logic failures. However, as Christopher Rand, principal technical engineer at Nordson Test & Inspection, points out, the validation of kilowatt-class devices requires a holistic view. "At these kilowatt-class power levels, we’re essentially validating not only the device itself, but the entire package, the cooling, and the test ecosystem itself," Rand explains. The tools used in the test ecosystem have become inseparable from the device being tested, meaning that if the test hardware itself fails to maintain stability, the data collected becomes unreliable.
This shift has forced a rethink of what constitutes "coverage." Brent Bullock, test technology director at Advantest, notes that the industry is transitioning from a reliance on pure fault coverage to a more nuanced model that correlates fault coverage with thermal coverage. Engineers can no longer assume that a device passing an electrical test is truly healthy. If a test exercise fails to generate heat in the specific regions of the die where a real-world AI workload will concentrate it, the test may provide a false sense of security. A chip might pass a structural scan, only to fail in the field when a sustained, high-intensity inference task causes a thermal excursion that the test floor never triggered.
The Chronology of Thermal Instability
The danger of high-power chips is that failure mechanisms operate on drastically different time scales. Some catastrophic failures occur within microseconds, while others emerge over seconds or even hours of operation.
In the first few hundred microseconds of a high-load event, a chip can enter a state of thermal runaway. This rapid surge in current and heat is often too fast for standard environmental control systems to mitigate. Advantest’s Bullock notes that test equipment must now be capable of reacting in near-real-time to detect voltage drops across contacts. If the current begins to spiral, the test system must terminate the process immediately to prevent permanent damage to the die, the socket, or the load board.

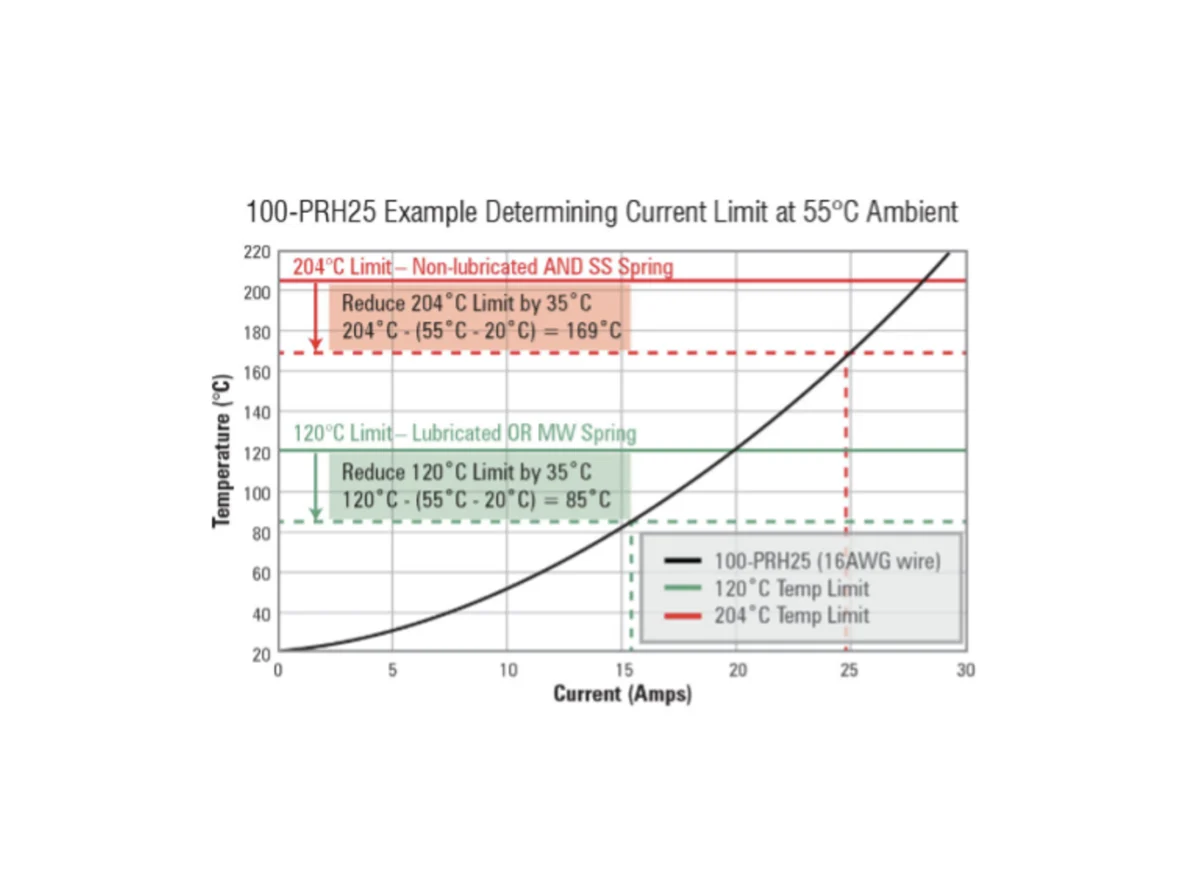

As the test duration extends into the millisecond and second range, a different problem emerges: the degradation of the test interface itself. Glenn Cunningham, director of test and characterization at Modus Test, highlights that sustained current causes the physical contacts on the test board to heat up. This temperature increase leads to higher contact resistance, which in turn limits the amount of current the interface can safely carry. A test contact might pass a continuity check at the start of a cycle, but as the heat builds, the resistance increases, causing the device to fail the power delivery requirements mid-test. This creates a scenario where the "failure" is a byproduct of the test hardware’s own thermal limitations rather than a defect in the silicon.
The Full-Stack Dependency
Historically, engineers could compartmentalize their validation efforts, treating the load board, the tester, and the device as separate entities. Today, those boundaries have effectively dissolved. The test path is no longer electrically or thermally neutral; it is a critical component of the experiment. Damian Megna, product manager for power and thermal instrument solutions at Teradyne, describes the current state as a "three-way dance" between the device manufacturer, the handler/prober companies, and the test equipment providers.
The complexity is compounded by the behavior of current distribution. Current does not flow uniformly across all power pins; it follows the path of least resistance. If a specific contact develops a minor defect or higher resistance, current will redistribute to the remaining healthy contacts. This creates a feedback loop: the remaining contacts take on a higher load, generate more heat, and potentially reach a point of electrical overstress (EOS). This phenomenon can result in catastrophic failure of the socket or the device, turning a standard test run into a destructive event.
Modeling and Simulation: Bridging the Gap
To combat these variables, companies are shifting toward predictive modeling. Synopsys principal product manager Lang Lin emphasizes that a spreadsheet is no longer sufficient to guarantee design quality. Engineers must now run actual workloads, apply stimulus, and measure temperatures across the die in real-time to back up their system design.
The industry is placing greater emphasis on transient analysis before silicon ever reaches the tester. By modeling how an accelerator behaves as workloads shift over time, engineers can identify "weak" points where a specific combination of voltage, temperature, and current could trigger a failure. This proactive approach helps in setting better guard bands, though this comes with a trade-off: large guard bands designed to account for thermal uncertainty can significantly degrade the performance of the accelerator, potentially undermining the very speed advantages that make the chip desirable.
Implications for Long-Term Reliability
Perhaps the most daunting challenge is that many reliability issues do not manifest during the initial testing phase. Defects such as voiding, delamination, or micro-cracking in the package often begin as minor structural weaknesses. Over time, repeated thermal cycling—the expansion and contraction of materials under load—propagates these defects.
Nordson’s Rand notes that the most concerning defects are not the "gross" failures that show up immediately. Instead, they are the subtle, incremental changes that accumulate over thousands of hours of operation. "As soon as you remove that device from that situation and take the heat away, you might lose the warpage," Rand says, noting that the physical damage remains, even if the symptoms disappear the moment the chip cools down.
This reality has led to an increased reliance on non-destructive inspection techniques, such as X-ray and acoustic microscopy, both before and after stress testing. By comparing the state of the package before and after high-power cycling, engineers can identify propagation in cracks or voids that would otherwise go unnoticed until the device fails in a customer’s data center.
Future Outlook: Monitoring Beyond the Lab
Because it is economically and physically impossible to test a device for every possible scenario it will encounter over a five-year lifespan, the industry is moving toward in-situ monitoring. Companies like proteanTecs are advocating for the integration of deep-chip monitoring—embedding sensors within the silicon to track timing margins, IR drop, and cycle-to-cycle jitter during actual operation.
Alex Burlak, executive vice president of engineering and customer success at proteanTecs, argues that validation must follow the device into the field. "It’s not enough to collect voltage and temperature from the chip," Burlak says. "You need to collect timing margin information and IR drop information" to understand how the chip is aging in real-time.
As we look toward the next generation of AI hardware, the definition of a "validated" product is undergoing a permanent transformation. The 1kW ceiling is not merely a power limit; it is a gateway to a new era of engineering where thermal, structural, and temporal dynamics are as critical as logic. The successful AI accelerators of the future will be those designed with a "full-stack" awareness, supported by a test ecosystem that understands not just the current, but the heat, the time, and the history of every pulse of power.
