As the semiconductor industry pushes toward increasingly massive chiplet architectures and large-scale panel-level packaging, the physical integrity of these devices has emerged as a critical bottleneck. The primary adversary in this evolution is thermally induced warpage—a phenomenon where mismatched rates of material expansion lead to structural deformation, compromised electrical connections, and manufacturing failures. While conventional engineering strategies have historically focused on managing these stresses, a paradigm shift is underway: the integration of Negative Thermal Expansion (NTE) materials designed to contract, rather than expand, when subjected to heat.
The Challenge of Material Mismatch in Scaling
In modern heterogeneous integration, a single package may contain a complex stack of silicon dies, organic substrates, metallic interconnects, and epoxy molding compounds (EMC). Each of these materials possesses a unique Coefficient of Thermal Expansion (CTE). When a package undergoes the high-temperature cycles inherent in reflow soldering or accelerated stress testing, these materials attempt to expand at different rates. If a bottom substrate expands faster than the die bonded to it, the edges of the structure are forced to curl or warp.
This distortion is not merely a cosmetic flaw; it is a fundamental manufacturing barrier. Vacuum chucks, which are essential for holding substrates in place during lithography and bonding, require a flat surface to maintain a vacuum seal. If the warpage exceeds the tolerance of the equipment, the assembly process fails, leading to yield loss. As packages scale from standard dimensions to large-format panels—some exceeding 300mm or even 600mm—the displacement caused by thermal mismatch grows exponentially, turning micrometers of deflection into potential millimeters of failure.
A Historical Chronology of Packaging Stress
The evolution of packaging technology has moved from single-die configurations to multi-die heterogeneous integration. During the early 2000s, thermal management was largely a matter of heat dissipation. However, as the industry entered the era of 2.5D and 3D ICs around 2010, the mechanical stability of the package became a primary concern.
By 2015, the industry began to reach the limits of conventional underfill materials. Researchers noted that even with optimized filler loading, the disparity between inorganic silicon and organic substrates remained a leading cause of package failure. The 2020s marked a transition toward panel-level packaging, which offered superior cost-efficiency but introduced a new scale of warpage issues. Recent industry reports suggest that as of 2024, warpage-related yield loss has become a top-three concern for high-end packaging houses, prompting the current intense focus on CTE-modulating materials.
The Physics of Negative Thermal Expansion
True NTE materials are a rare class of substances that shrink upon heating, an anomalous behavior compared to the vast majority of solids. This phenomenon typically arises from specific molecular lattice dynamics. In some cases, the contraction is driven by a phase change or a temperature-dependent reorientation of the internal crystal structure.
Engineering these materials for industrial application requires a sophisticated understanding of rheology and lattice design. Rather than relying on naturally occurring NTE substances, which are limited in supply and often difficult to process, materials scientists are creating "caged" or "lattice-structured" fillers. By encasing a material within a rigid, house-of-cards-style matrix, engineers can force the composite to redistribute internal stress in a way that yields a net-negative or net-zero CTE.
Sanjiv Bhatt of the Mitsubishi Chemical Group notes that the effectiveness of these materials depends less on the substance itself and more on the network architecture. Carbon fibers and specialized inorganic fillers can be used to create a reinforcing skeleton that restricts the "flow" of the resin matrix during expansion. When the temperature rises, the network structure prevents the standard expansion of the polymer, effectively "tuning" the material to remain stable alongside the inorganic silicon components.
Supporting Data and Material Limitations
The implementation of NTE materials is not without significant hurdles. Currently, the list of commercially viable NTE materials is extremely short. Compounds such as zirconium tungstate and α-eucryptite have demonstrated potential, but they remain niche products.
A primary constraint is dimensionality. Most organic polymers that exhibit NTE do so in only one dimension, which is insufficient for the three-dimensional, omnidirectional stresses experienced by a complex semiconductor package. Consequently, the industry is focused on inorganic fillers that can be integrated into organic epoxies.
Data from research laboratories suggest that adding these fillers can reduce the CTE of a standard molding compound by as much as 30% to 50%, significantly bringing it closer to the CTE of silicon (approx. 2.6 ppm/°C). This matching is crucial. As Mike Kelly, vice president at Amkor Technology, points out, thinning the silicon is a potential lever for managing warpage, but it creates a trade-off in thermal power management—thin silicon is simply not efficient enough for high-performance computing (HPC) applications. Therefore, the burden of stress management must shift from the silicon to the packaging materials.
The Role of Simulation and Predictive Modeling
Before a single package is fabricated, manufacturers employ extensive Finite Element Analysis (FEA) to predict how a design will behave under thermal stress. Synopsys and other EDA vendors have integrated thermal-mechanical modeling into the design flow to identify potential warpage "hot spots" early in the development cycle.
According to Lang Lin of Synopsys, the shift to larger panels and the introduction of glass substrates have intensified the need for these models. Glass, while offering excellent electrical properties, is brittle and highly sensitive to mechanical stress, making it an unforgiving substrate for current manufacturing processes. The use of NTE fillers is increasingly being modeled as a primary design lever, allowing engineers to "pre-compensate" for expected expansion by designing a composite with an engineered, counter-acting CTE.
Industry Outlook and Future Implications

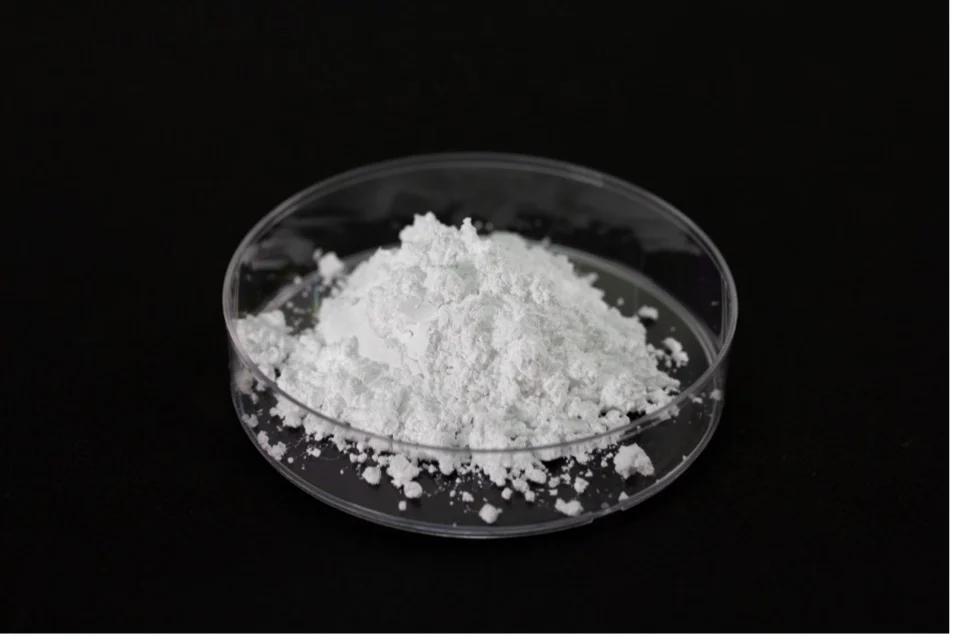

The arrival of commercially available NTE materials from suppliers like Mitsubishi Chemical Group signals a move toward a "design-for-reliability" standard. However, the path to widespread adoption faces three key criteria:
- Process Compatibility: The fillers must be easily dispersible in current molding resins without altering the viscosity to the point where they become unusable in existing high-speed dispensing equipment.
- Stability Across Ranges: The NTE behavior must be consistent across the entire temperature range, from room-temperature storage to the high-temperature reflow and curing cycles.
- Purity Standards: Given the proximity of packaging materials to the die, any impurities in the NTE fillers—specifically those that could lead to alpha-particle emissions—must be strictly controlled to prevent soft errors in memory and logic circuits.
Beyond the immediate goal of reducing warpage, this technology has broader implications for the semiconductor roadmap. If designers can reliably manage the mechanical stress of large-scale panels, it opens the door to even larger chiplet configurations, potentially doubling the surface area of current processors. This could lead to a new generation of "super-chips" that integrate HBM (High Bandwidth Memory), logic, and I/O into a single package without the yield degradation that currently limits such designs.
As the industry moves toward 2030, the reliance on passive thermal management will likely be supplanted by active material engineering. The ability to manipulate the fundamental expansion properties of the materials themselves represents a significant leap forward. While the research is still maturing, the integration of NTE materials is likely to become a cornerstone of semiconductor packaging, serving as the hidden foundation upon which the next decade of high-performance computing will be built. The transition from managing warpage to controlling it at the molecular level marks a defining moment in the evolution of hardware engineering.
